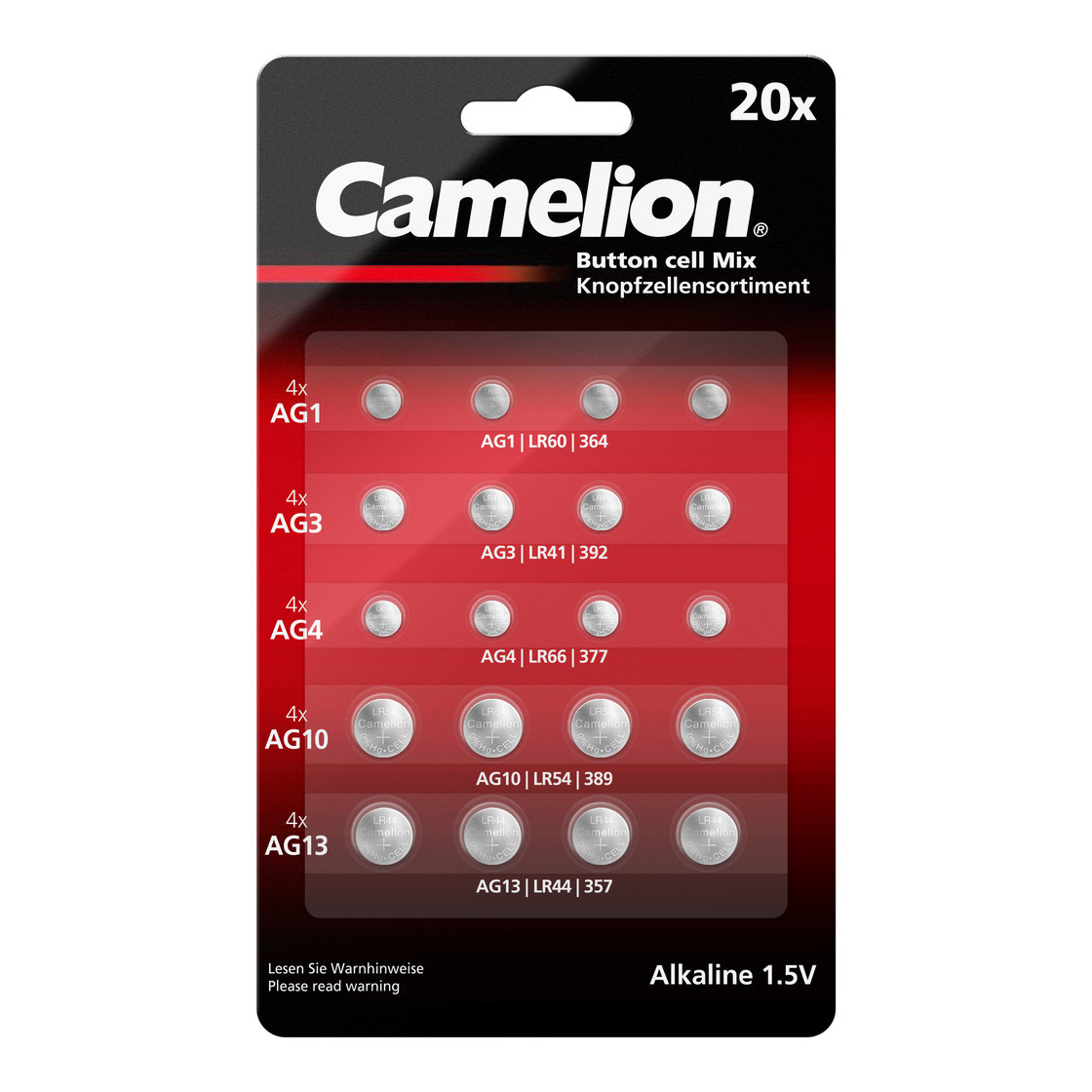

Alkaline button cell AG1 / LR60
- Int. size according to IEC: LR60
- Size: AG1
- Electrochemical system: Alkaline manganese
- Nominal capacity: 14mAh
- Weight (g): 0.30
- Voltage (V): 1.5
- Casing: steel
- Dimensions (ØxL mm): 6.8 x 2.15
- Operating temperature: -18° to 55° C
- Storage temperature: 15° to 25° C
- Minimum shelf life: 5 years
Alkaline button cell AG3 / LR41
- Int. size according to IEC: LR41
- Size: AG3
- Electrochemical system: Alkaline manganese
- Nominal capacity: 41mAh to 0.9V (20±2° C at 15kO continuous load)
- Weight (g): 0.64
- Voltage (V): 1.5
- Casing: steel
- Dimensions (ØxL mm): 7.9 x 3.6
- Operating temperature: -18° to 55° C
- Storage temperature: 15° to 25° C
Minimum shelf life: 5 years
Alkaline button cell AG4 / LR66
- Int. size according to IEC: LR66
- Size: AG4
- Electrochemical system: Alkaline manganese
- Nominal capacity: 20mAh to 0.9V (20±2° C at 45kO continuous load)
- Weight (g): 0.34
- Voltage (V): 1.5
- Casing: steel
- Dimensions (ØxL mm): 6.8 x 2.6
- Operating temperature: -18° to 55° C
- Storage temperature: 15° to 25° C
- Minimum shelf life: 5 years
Alkaline button cell AG10 / LR54
- Int. size according to IEC: LR54
- Size: AG10
- Electrochemical system: Alkaline manganese
- Nominal capacity: 78mAh to 0.9V (20±2° C at 10kO continuous load)
- Weight (g): 1.2
- Voltage (V): 1.5
- Casing: steel
- Dimensions (ØxL mm): 11.6 x 3.1
- Operating temperature: -18° to 55° C
- Storage temperature: 15° to 25° C
- Minimum shelf life: 5 years
Alkaline button cell AG13 / LR44
- Int. size according to IEC: LR44
- Size: AG13
- Electrochemical system: Alkaline manganese
- Nominal capacity: 158mAh to 0.9V (20±2° C at 5.0kO continuous load)
- Weight (g): 2.0
- Voltage (V): 1.5
- Casing: steel
- Dimensions (ØxL mm): 11.6 x 5.4
- Operating temperature: -18° to 55° C
- Storage temperature: 15° to 25° C
- Minimum shelf life: 5 years
Battery law information:
In connection with the sale of batteries or the delivery of devices containing batteries, we are obliged to draw your attention to the following:
Tape the terminals of old batteries and rechargeable batteries containing lithium before use to prevent an external short circuit. When disposing of old electrical appliances that contain batteries or rechargeable batteries, these should - as far as possible - be removed beforehand.
Take-back and recycling: Used batteries must not be disposed of with household waste. Consumers are legally obliged to return used batteries to ensure that they are disposed of correctly. Used batteries can be returned free of charge to public collection points in the municipality and wherever batteries are sold.
Symbolic labelling: Batteries are marked with the symbol of a crossed-out dustbin. This symbol indicates that batteries must not be disposed of with household waste.
Further information on the new EU Battery Regulation and the associated obligations can be found on the European Commission's website or from the relevant national authorities.
